AP-220BK/BN
![]()

Discover the joy of a true piano experience
Features
Tones that take resonance and expressivity to the next level
Linear Morphing AIF* sound source
Linear Morphing AIF* sound source reproduces wider than ever, more natural fortissimos and pianissimos. A world-famous brand concert grand piano was used to collect samples of tones produced by four optimum key pressures for each note. Next, morphing technology was used to modify the notes for continuity.
The result is naturally smooth transitions from delicate pianissimos to powerful fortissimos, which brings you a level of grand piano expression that until now was difficult to reproduce in a digital piano.
- * Acoustic & Intelligent Filtering System
Improved Acoustic Resonance System
Using the damper pedal adds acoustic resonance, which is similar to that produced by the vibration of strings in a grand piano. The result is richer, more acoustically natural expressivity.
128-note maximum polyphony
Keyboard for realistic acoustic touch and improved play of successive notes

True and smooth grand piano level key action is reproduced using the actual weight of the hammer, without relying at all on springs. A Tri-Sensor Scaled Hammer Action Keyboard improves playing of successive notes, for a musical experience that is the next best thing to an acoustic grand. Of course, low notes play heavier and higher notes play lighter, just like an acoustic grand.
Versatile features to support piano lessons
Music Library (60 built-in tunes and 1 user tune)
Right or left hand part off function for lesson play
Duet Mode allows two people to play within the same range.
Metronome
Recorder
3 pedals (damper, soft, sostenuto)
Duet Mode

Duet mode allows two people to play within the same range. In the Duet Mode, the left (soft) pedal functions as a damper pedal for the left-side keyboard.
16 high-quality tones including stereo-sampled grand piano tone
Digital Effects:
Reverb (4 types), Chorus (4 types), Brilliance, DSP (preset for some tones)
Operation Lock Function
Operation Lock Function protects against unintentional button operations.
![]()
AP-220BK/BN
![]()
Specifications
Keyboard |
88-key, Tri-sensor scaled hammer action keyboard |
|---|---|
Touch Response |
3 sensitivity levels, Off |
Sound Source |
Linear Morphing AIF |
Maximum Polyphony |
128 |
Tones |
16 built-in tones: Grand Piano (Modern, Classic, Variation), Electric Piano, FME Piano, 60's E. Piano, Harpsichord, Vibraphone, Pipe Organ, Jazz Organ, Electric Organ 1, Electric Organ 2, Strings 1, Strings 2, Bass 1, Bass 2 * Bass 1 and Bass 2 are special low-range tones for use with Split. |
Layer/Sprit |
Layer, Split |
Digital Effects |
Reverb (4 types), chorus (4 types), brilliance, DSP (built into some tones), acoustic resonance system |
Built-in Songs |
60 (Music Library) |
Song Expansion |
1 song (65KB maximum) |
Lesson Function |
Part on/off (Lesson part: right hand/left hand) |
Metronome |
Beats: 0, 2, 3, 4, 5, 6 (Tempo range: ? = 20 to 255) |
Recorder |
2 tracks x 1 song, approximately 5,000 notes maximum, real-time recording/playback |
Other Functions |
|
Key Transpose |
25 steps (-12 to +12 semitones) |
Tuning Control |
A4 = approximatery 440 Hz ± 99 cents |
Pedals |
3 pedals (damper, soft, sostenuto) * damper = on/off |
MIDI |
|
Speakers |
12cm x 2 |
Amp Output |
8W?8W |
Input/Output Terminals |
|
Power Requirements |
AC adaptor: AD-A12150LW |
Dimensions (W x D x H) |
1,395 x 432 x 835mm * Excluding music stand, and other projections |
Weight |
37.5kg |

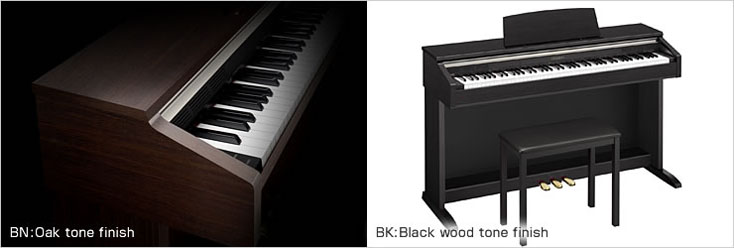

Body Color/Finish |
AP-220BK: Black wood tone finish AP-220BN: Oak tone finish |
Included Accessories |
Bench, score book, AC adaptor, music stand |
EAN code |
AP-220BK: 4971850361633 AP-220BN: 4971850361541 |
![]()
